Much More Than a Firewall

The Heart of your Network

device-features

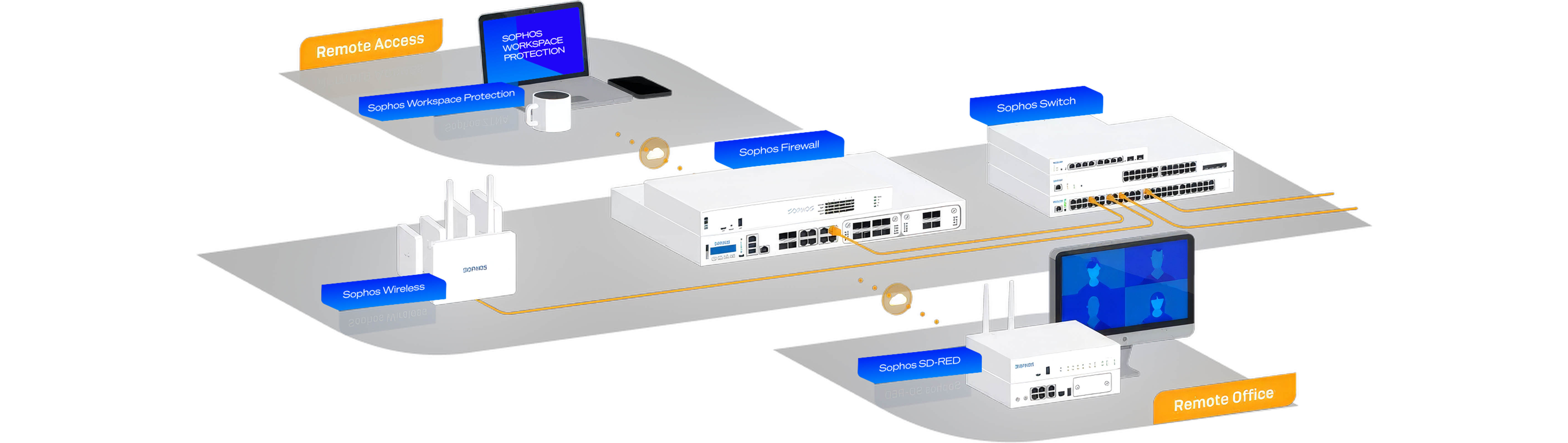

Extend Your Network

Sophos Firewall enables you to extend your network anywhere, easily and affordably with a variety of secure VPN solutions that are ideal for today’s distributed work-from-home world.

Extend Your Protection

Sophos Firewall integrates tightly with the rest of the Sophos ecosystem to provide incredible visibility, protection and response benefits whether you manage it yourself or let Sophos manage it for you.

Extend Your Team

Sophos Firewall, Synchronized Security and Sophos Central combine to save you substantial time, effort, and resources managing your IT security. It’s like doubling the size of your team.

Extend Your Network

Sophos Connect VPN client, unique SD-RED devices, and APX wireless access points, plus support for AWS and Azure enable you to extend your network anywhere, easily and affordably.

sd-red-device

SD-RED Remote Ethernet Devices

Sophos SD-RED makes it easy and affordable to extend your secure network.

  • Zero-touch auto-provisioned SD-WAN tunnel
  • Secure and scalable light-weight VPN
  • Affordable - no licensing required on the device



Compare Models  See How to extend your network



Model Name SD-RED 20 SD-RED 60
Capacity
Maximum Throughput 250 Mbps 850 Mbps
Physical Interfaces (Built-in)
LAN Interfaces 4 x 10/100/1000 Base-TX (1 GbE Copper) 4 x 10/100/1000 Base-TX (1 GbE Copper)
WAN Interfaces 1 x 10/100/1000 Base-TX (shared with SFP) 2 x 10/100/1000 Base-TX (WAN1 shared port with SFP)
SFP Interfaces 1x SFP Fiber (shared port with WAN) 1x SFP Fiber (shared port with WAN1)
Power-over Ethernet Ports None 2 PoE Ports (total power 30W)
USB Ports 2 x USB 3.0 (front and rear) 2 x USB 3.0 (front and rear)
COM Ports 1 x Micro-USB 1 x Micro-USB
Optional Connectivity
Modular Bay 1 (for use with optional Wi-Fi OR 4G/LTE Card) 1 (for use with optional Wi-Fi OR 4G/LTE Card)
Optional Wi-Fi Module 802.11 a/b/g/n/ac Wave 1 (Wi-Fi 5) dual-band capable
2x2 MIMO 2 antennas
802.11 a/b/g/n/ac Wave 1 (Wi-Fi 5) dual-band capable
2x2 MIMO 2 antennas
Optional 3G/4G LTE Module  MC7430/MC7455 Sierra Wireless Card MC7430/MC7455 Sierra Wireless Card
Optional VDSL Modem Optional SFP Modem (not yet supported) Optional SFP Modem (not yet supported)
Physical Specifications
Dimensions 225 x 44 x 150 (w*h*d) mm
8.86 x 1.73 x 5.91 (w*h*d) inches
225 x 44 x 150 (w*h*d) mm
8.86 x 1.73 x 5.91 (w*h*d) inches
Weight 0.9 kg/1.8 kg (1.98 lbs/3.97 lbs) Unpacked/Packed 1.0 kg/2.2 kg (2.2 lbs/4.85 lbs) Unpacked/Packed
Power Supply Adapter AC Input: 110-240VAC @50-60 Hz
DC Output:  12V +/- 10%, 3.7A, 40W"
AC Input: 110-240VAC @50-60 Hz
DC Output:  12V +/- 10%, 6.95A, 75W
Power Redundancy Support Yes, optional 2nd power supply Yes, optional 2nd power supply
Power Consumption Idle: 6.1Watt/20.814 BTU
Full Load: 22.6Watt/77.114 BTU
Idle: 11.88 Watt/40.536 BTU
Full Load without PoE: 25.33 Watt/86.429 BTU
Full Load with PoE: 62.48 Watt/213.190 BTU
Noise level (average) Fanless Fanless
Temperature (operational) 0°C to 40°C (32°F to 104°F) 0°C to 40°C
Temperature (storage) -20°C to 70°C (-4°F to 158°F) -20°C to 70°C (-4°F to 158°F)
Humidity 10-90% RH, non-condensing 10-90% RH, non-condensing
Safety Regulations
Certifications (Safety, EMC, Radio) CE/FCC/IC/RCM/VCCI/CB/UL/CCC/KC/ANATEL CE/FCC/IC/RCM/VCCI/CB/UL/CCC/KC/ANATEL

Sophos Connect VPN Client

Sophos Connect makes it easy to connect remote workers with our extremely intuitive VPN client for Windows and macOS.

  • Secure connectivity with IPSec or SSL VPN
  • Support for Windows and macOS
  • Easy, free, reliable
connect-vpn
Wireless Access Points

Wireless Access Points

We’ve made extending your network with wireless secure, fast, and easy to manage.

  • Plug-and-play auto-discovery setup
  • High performance 802.11ac Wave 2
  • Dual radios and multiple SSID support



Compare Models  Download Brochure

  APX 120 APX 320 APX 530 APX 740
Deployment Indoor; desktop, wall, or ceiling mount.
Mounting Kits Included: Bracket for wall- and/or 15/16” T-bar or flat ceiling mount. Included: Bracket for wall- and/or 15/16", 9/16", 3/8" T-bar ceiling-mount.
Optional: Kits for flat ceiling, plenum and suspend mount.
WLAN Standards 802.11 a/b/g/n/ac Wave 2
Radios 1x 2.4 GHz single band
1x 5 GHz single band
1x 2.4 GHz/5 GHz dual-band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
1x 2.4 GHz single band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
Antennas 2x internal dual-band antenna for Radio-1 and 2 2x internal dual-band antenna for Radio-1
2x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE (for future use)
3x internal 2.4 GHz antenna for Radio-1
3x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE (for future use)
4x internal 2.4 GHz antenna for Radio-1
4x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE (for future use)
DFS

Image removed.

Image removed.

Image removed.

Image removed.

Performance 2x2:2 MU-MIMO 2x2:2 MU-MIMO 3x3:3 MU-MIMO 4x4:4 MU-MIMO
Max. Throughput 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) 867 Mbps (5 GHz) + 867 Mbps (5 GHz) 1300 Mbps (5 GHz) + 450 Mbps (2.4 GHz) 1733 Mbps (5 GHz) + 600 Mbps (2.4 GHz)
Interfaces 1x 12V DC-in
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet port
1x RJ45 10/100/1000 Ethernet w/PoE
Power (Max.) 11.8 W 11.5 W 16.7 W 22.4 W
Power-over-Ethernet
(Min.)
PoE 802.3af PoE+ 802.3at
Dimensions 144x144x33.5 mm 155x155x38 mm 183x183x39 mm 195x195x43 mm
Weight 0.256 kg 0.474 kg 0.922 kg 1.012 kg
Certifications & Compliance** CB, UL, CE, FCC, ISED (IC), RCM, MIC, Anatel,
EN 60601-1-2 (Medical Equipment Directive)
CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel (planned),
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
CB, UL, CE, FCC, ISED (IC), RCM, Anatel (planned),
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
CB, UL, CE, FCC, ISED (IC), RCM, Anatel (planned),
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
Warranty All APX models have a standard 5-year warranty included in the purchase price


Public and Private Cloud Protection

If your public or private cloud infrastructure requires secure access and protection, Sophos Firewall has you covered.

  • Full protection for AWS, Azure, and Nutanix
  • Integrates with Sophos protected servers and VDI
  • Easy deployment from the marketplace

See how Sophos Firewall protects you in the cloud

aws-azure-nutanix

Extend Your Protection

Sophos Firewall integrates tightly with the rest of the Sophos ecosystem to provide incredible visibility, protection and response benefits whether you manage it yourself or let Sophos manage it for you.

interceptx-graphic

Integrated Endpoint Protection for Desktops and Servers

Intercept X with intelligent Endpoint Detection and Response (EDR) for desktops, servers and mobile devices delivers the world’s best protection, integrated perfectly with Sophos Firewall.

See the Power of Synchronized Security

Managed Threat Response Service

Completely offload your cybersecurity with our 24/7 threat hunting, detection, and response service delivered by an expert team.

See How to Extend your Protection

mtr-graphic
cloud-graphics

Public Cloud Visibility and Threat Response

Sophos Cloud Optix provides visibility into security and compliance gaps in your public cloud infrastructure.

See How Sophos Cloud Optix Reveals All

Extend Your Team

Sophos Firewall, Synchronized Security and Sophos Central combine to save you substantial time, effort, and resources managing your IT security. It’s like doubling the size of your team.

Scale your Security – Not your Team

Sophos Central provides a single-pane-of-glass to monitor and manage all your Cybersecurity needs: Reducing day-to-day management, increasing clarity, reducing costs, increasing productivity, and ultimately enabling you to scale your security without scaling your team – at no extra cost.

See how Sophos Central extends your team

Shield

Put Your Security on Auto-Pilot

Sophos Firewall integrates with Intercept X to share information and respond automatically in real-time. They not only stop more threats, but you also get instant notification when there is a threat. More importantly, automatic isolation prevents threats from moving and spreading. It really is like putting your cybersecurity on auto-pilot.

See How Synchronized Security works

Button loop

The Ultimate Cloud Management and Reporting - for Free

  • A Single Pane of Glass

    Sophos Central is your single management console for all your Sophos products and Synchronized Security – a force multiplier for your team.

  • Central Management

    Easily deploy and manage your firewalls from Sophos Central using powerful group management tools.

  • Central Reporting

    Get instant insights into the health and status of your network through rich dashboards and reports.

See More Sophos Central Features

Central Icon
central-screenshot
