AP6 Series
Cloud management
Cloud-managed Wi-Fi 6/6E access points for indoor and outdoor use
AP6 Series access points cannot be managed from any Sophos firewall.
For models suitable for firewall management, see the APX Series.
The AP6 Series is a range of indoor and outdoor Wi-Fi 6/6E access points for management from the Sophos Central platform. With a broad feature-set and ultimate scalability, our cloud-managed models offer performance to suit both general Wi-Fi usage and the high throughput requirements of medium and high-density environments. Customers using other Sophos products can manage their Wi-Fi in the same console as all of their other security solutions. A local management option is also available for a single AP.
Wi-Fi 6/6E is the best choice for broad device support, excellent data rates, and enhanced security.
Scroll
AP6 420

Deployment
Indoor
General
STANDARDWi-Fi 6 (802.11ax)
RADIO BANDS2.4 GHz, 5 GHz
MANAGEMENTSophos Central cloud platform
Local User Interface (single AP)
USAGEGeneral purpose, low to medium density, e.g., retail, smaller education (K12), small to medium office, other verticals
Performance
RADIO SPECIFICATION2x2:2, Dual Radio
2.4 GHz single band
5 GHz single band
MAX. THEORETICAL DATA RATES2975 Mbps
575 Mbps (2.4 GHz) +
2400 Mbps (5 GHz)
ANTENNAS4 internal omnidirectional
2x 2.4 GHz antenna
2x 5 GHz antenna
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and ceiling mount (15/16’’ or 9/16’’ T-bar).
Optional: Kits for flat-ceiling, plenum, and suspend mount.
INTERFACES 1x 12V DC-in
1x Gigabit Ethernet port with 802.3at PoE+
Micro-USB console
POWER REQUIREMENT (PSE) 17.5 W
POWER-OVER-ETHERNETPoE+ 802.3at
DIMENSIONS183x183x35 mm
WEIGHT0.7 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED, RCM, TEC.
EN 60601-1-2 (Medical Equipment Directive)
WARRANTYLimited Lifetime Warranty
AP6 420

Front

Side
AP6 420E

Deployment
Indoor
General
STANDARDWi-Fi 6 / Wi-Fi 6E (802.11ax)
RADIO BANDS2.4 GHz, 5 GHz, 6 GHz1
MANAGEMENTSophos Central cloud platform
Local User Interface (single AP)
USAGEGeneral purpose, medium density, e.g., retail, smaller education (K12), small to medium office, various other verticals, modern environment with 6 GHz clients
Performance
RADIO SPECIFICATION2x2x2, Tri-radio
2.4 GHz single band
5 GHz single band
6 GHz single band
MAX. THEORETICAL DATA RATES5375 Mbps
575 Mbps (2.4 GHz) +
2400 Mbps (5 GHz) +
2400 Mbps (6 GHz)
ANTENNAS6 internal omnidirectional
2x 2.4 GHz antenna
2x 5 GHz antenna
2x 6 GHz antenna
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and ceiling mount (15/16’’ or 9/16’’ T-bar).
Optional: Kits for flat-ceiling, plenum, and suspend mount.
INTERFACES 1x 2.5 Multigigabit Ethernet port with 802.3at PoE+
Micro-USB console
POWER REQUIREMENT (PSE) 24.25 W
POWER-OVER-ETHERNETPoE+ 802.3at
DIMENSIONS183x183x35 mm
WEIGHT0.7 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED, RCM, TEC.
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
WARRANTYLimited Lifetime Warranty
AP6 420E

Front

Side
AP6 840

Deployment
Indoor
General
STANDARDWi-Fi 6 (802.11ax)
RADIO BANDS2.4 GHz, 5 GHz
MANAGEMENTSophos Central cloud platform
Local User Interface (single AP)
USAGEHigh-end, medium to high density, e.g., medium to large office, higher education, various other verticals
Performance
RADIO SPECIFICATION4x4x4, Dual Radio
2.4 GHz single band
5 GHz single band
MAX. THEORETICAL DATA RATES3550 Mbps
1150 Mbps (2.4 GHz) +
2400 Mbps (5 GHz)
ANTENNAS4 internal omnidirectional
4x 2.4/5 GHz dual band antennas
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and ceiling mount (15/16’’ or 9/16’’ T-bar).
Optional: Kits for flat-ceiling, plenum, and suspend mount.
INTERFACES 1x 2.5 Multigigabit Ethernet port with 802.3at PoE+
Micro-USB console
POWER REQUIREMENT (PSE) 30 W
POWER-OVER-ETHERNETPoE+ 802.3at
DIMENSIONS225x225x43 mm
WEIGHT1.2 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED, RCM, TEC.
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
WARRANTYLimited Lifetime Warranty
AP6 840

Front

Back
AP6 840E

Deployment
Indoor
General
STANDARDWi-Fi 6 / Wi-Fi 6E (802.11ax)
RADIO BANDS2.4 GHz, 5 GHz, 6 GHz1
MANAGEMENTSophos Central cloud platform
Local User Interface (single AP)
USAGEHigh-end, high density, e.g., medium to large office, higher education, various other verticals, high tech, modern environment with 6 GHz clients
Performance
RADIO SPECIFICATION4x4x4, Tri-radio
2.4 GHz single band
5 GHz single band
6 GHz single band
MAX. THEORETICAL DATA RATES8350 Mbps
1150 Mbps (2.4 GHz) +
2400 Mbps (5 GHz) +
4800 Mbps (6 GHz)
ANTENNAS8 internal omnidirectional
4x 2.4/5 GHz dual band antennas
4x 6 GHz antenna
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and ceiling mount (15/16’’ or 9/16’’ T-bar).
Optional: Kits for flat-ceiling, plenum, and suspend mount.
INTERFACES 1x 2.5 Multigigabit Ethernet port with 802.3bt PoE++
1x 2.5 Multigigabit Ethernet port
Micro-USB console
POWER REQUIREMENT (PSE) 45 W
POWER-OVER-ETHERNETPoE++ 802.3bt
DIMENSIONS225x225x43 mm
WEIGHT1.2 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED, RCM, TEC.
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
WARRANTYLimited Lifetime Warranty
AP6 840E

Front

Back
AP6 420X

Deployment
Outdoor, IP 67 rated
General
STANDARDWi-Fi 6 (802.11ax)
RADIO BANDS2.4 GHz, 5 GHz
MANAGEMENTSophos Central cloud platform
Local User Interface (single AP)
USAGEGeneral purpose, outdoor and exposed areas, low to medium density, e.g., manufacturing, parking lots, environments with non-standard temperature requirements
OPERATING TEMPERATURE-20°C/-4°F to 55°C/130°F
Performance
RADIO SPECIFICATION2x2:2, Dual Radio
2.4 GHz single band
5 GHz single band
MAX. THEORETICAL DATA RATES2975 Mbps
575 Mbps (2.4 GHz) +
2400 Mbps (5 GHz)
ANTENNAS4 external omnidirectional
2x 2.4 GHz antenna with type-N connector
2x 5 GHz antenna with type-N connector
Optional Antennas: 120° sector antenna
30° directional antenna
DFSYes
Physical Specifications
MOUNTINGPole or wall mount
MOUNTING KITIncluded: Bracket, clamps for wall and/or pole mount.
INTERFACES 1x 2.5 Multigigabit Ethernet port with 802.3at PoE+
POWER REQUIREMENT (PSE) 30 W
POWER-OVER-ETHERNETPoE+ 802.3at
DIMENSIONS260.5x180x69 mm
WEIGHT1.6 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED, RCM, TEC.
EN 60601-1-2 (Medical Equipment Directive)
WARRANTYLimited Lifetime Warranty
AP6 420X

Front

Back
1 The 6 GHz band is not supported in all countries. See https://www.wi-fi.org/countries-enabling-wi-fi-in-6-ghz-wi-fi-6e for further information.
2 Not all models may be available in all regions. Please check with your local supplier for details.
3 Further information and guidance on the AP6 Series power requirements can be found here: https://support.sophos.com/support/s/article/KB-000045501?language=en_US
AP6 Series – Optional Accessories
Powering your AP6 Series |
As your AP6 Series access point will be supplied without a power source, you will need a compatible PoE injector or switch. An external power supply is available for the AP6 420. Check the technical specifications to determine if you need 802.3at (PoE+) or 802.3bt (PoE++). Further information and guidance on the AP6 Series power requirements can be found here: https://support.sophos.com/support/s/article/KB-000045501?language=en_US To reap the full benefits of the multigigabit connectivity on most AP6 Series models, we would highly recommend using one of our 2.5G switches. Further details can be found here: https://www.sophos.com/en-us/products/sophos-switch. |
|
Mounting Kits |
Optional mounting kits are available for all indoor AP6 Series models for flat-ceiling, plenum, or suspend mount. Check with your local Sophos partner for further details and pricing. |
|
Antenna Options for AP6 420X |
In addition to the omnidirectional antennas supplied with the unit, we also offer external antenna options for the outdoor AP6 420X to meet the requirements of additional usage scenarios. These can be purchased separately.
As the name suggests, the standard omnidirectional antennas are designed to provide relatively even coverage around the unit in all directions. These are suitable for usage scenarios where the connecting clients will be distributed around the access point. In some outdoor areas, there may be obstructions which can interfere with the signal. With directional/sector antennas, you achieve targeted coverage across an extended range and reduce wasted signal. |
![]() |
APX Series
Firewall or cloud management
Firewall-managed Wi-Fi 5 access points for indoor use
Wi-Fi 5 outdoor model suitable for cloud-management only
For Wi-Fi 6/6E, see the AP6 Series.
If you prefer to manage your wireless protection from your Sophos firewall, our indoor APX Series Wi-Fi 5 access points are an ideal choice. These models have been widely deployed by customers seeking an all-in-one solution to manage on premises. The outdoor model in this range is suitable for cloud management only. While the indoor models can also be managed in the cloud via Sophos Central, we would recommend the AP6 Series for customers interested in cloud management.
Wi-Fi 5 is an option for customers seeking a traditional approach to Wi-Fi management, with basic connectivity needs, a relatively static environment, and limited scalability requirements.
Scroll
APX 120

Deployment
Indoor
General
STANDARDWi-Fi 5 (802.11ac Wave 2)
RADIO BANDS2.4 GHz, 5 GHz
MANAGEMENTSophos Firewall OS
Sophos Central cloud platform
USAGEBasic wireless, low density, e.g., small retail
Performance
RADIO SPECIFICATION2x2:2, Dual Radio
2.4 GHz single band
5 GHz single band
MAX. THROUGHPUTDual-Band Mode: Up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
ANTENNAS2 internal omnidirectional
2x 2.4/5 GHz dual band antennas
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and/or 15/16” T-bar or flat-ceiling mount.
INTERFACES 1x 12V DC-in
1x RJ45 10/100/1000 Ethernet with 802.3af PoE
POWER (MAX.)11.8 W
POWER-OVER-ETHERNETPoE 802.3af
DIMENSIONS144x144x33.5 mm
WEIGHT0.256 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED (IC), RCM, MIC, Anatel.
EN 60601-1-2 (Medical Equipment Directive)
APX 120

Front

Back
APX 320

Deployment
Indoor
General
STANDARDWi-Fi 5 (802.11ac Wave 2)
RADIO BANDS2.4 GHz, 5 GHz
MANAGEMENTSophos Firewall OS
Sophos Central cloud platform
USAGEGeneral purpose, medium density, higher in dual 5 GHz mode, e.g., education
Performance
RADIO SPECIFICATION2x2:2, Dual Radio
2.4 GHz/5 GHz dual band
5 GHz single band
MAX. THROUGHPUTDual 5 GHz Mode: Up to 867 Mbps (5 GHz) + 867 Mbps (5 GHz)
Dual-Band Mode: Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
ANTENNAS4 internal omnidirectional
2x 2.4/5 GHz dual-band antennas
2x 5 GHz antennas
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and/or 15/16", 9/16", 3/8" T-bar ceiling mount.
Optional: Kits for flat-ceiling, plenum, and suspend mount.
INTERFACES 1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet with 802.3af PoE
POWER (MAX.)11.5 W
POWER-OVER-ETHERNETPoE 802.3af
DIMENSIONS155x155x38 mm
WEIGHT0.474 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel.
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
APX 320

Front

Back
APX 530

Deployment
Indoor
General
STANDARDWi-Fi 5 (802.11ac Wave 2)
RADIO BANDS2.4 GHz, 5 GHz
MANAGEMENTSophos Firewall OS
Sophos Central cloud platform
USAGEGeneral purpose, medium to high density, e.g., standard mid-sized office
Performance
RADIO SPECIFICATION3x3:3, Dual Radio
2.4 GHz single band
5 GHz single band
MAX. THROUGHPUTDual-Band Mode: Up to 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
ANTENNAS6 internal omnidirectional
3x 2.4 GHz antennas
3x 5 GHz antennas
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and/or 15/16", 9/16", 3/8" T-bar ceiling mount.
Optional: Kits for flat-ceiling, plenum, and suspend mount.
INTERFACES 1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet
1x RJ45 10/100/1000 Ethernet with 802.3at PoE+
POWER (MAX.)16.7 W
POWER-OVER-ETHERNETPoE+ 802.3at
DIMENSIONS183x183x39 mm
WEIGHT0.922 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED (IC), RCM, Anatel.
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)

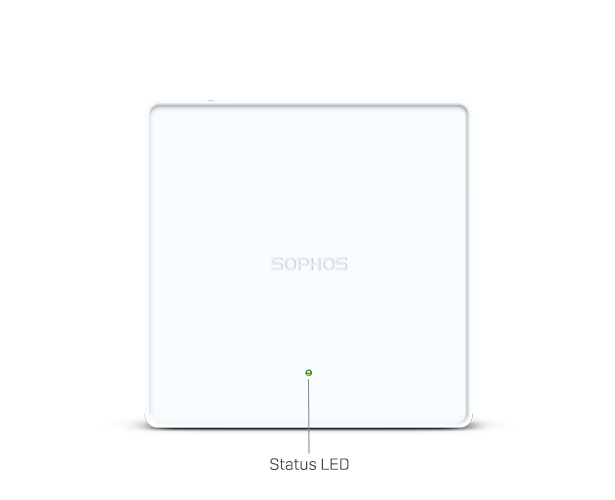

APX 530

Front

Back
APX 740

Deployment
Indoor
General
STANDARDWi-Fi 5 (802.11ac Wave 2)
RADIO BANDS2.4 GHz, 5 GHz
MANAGEMENTSophos Firewall OS
Sophos Central cloud platform
USAGEHigh performance, high density, e.g., cloud-heavy environments
Performance
RADIO SPECIFICATION4x4:4, Dual Radio
2.4 GHz single band
5 GHz single band
MAX. THROUGHPUTDual-Band Mode: Up to 600 Mbps (2.4 GHz) + 1733 Mbps (5 GHz)
ANTENNAS8 internal omnidirectional
4x 2.4 GHz antennas
4x 5 GHz antennas
DFSYes
Physical Specifications
MOUNTINGDesktop, wall, or ceiling mount
MOUNTING KITIncluded: Bracket for wall and/or 15/16", 9/16", 3/8" T-bar ceiling mount.
Optional: Kits for flat-ceiling, plenum, and suspend mount.
INTERFACES 1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet
1x RJ45 10/100/1000 Ethernet with 802.3at PoE+
POWER (MAX.)22.4 W
POWER-OVER-ETHERNETPoE+ 802.3at
DIMENSIONS195x195x43 mm
WEIGHT1.012 kg
CERTIFICATIONS AND COMPLIANCE2CB, UL, CE, FCC, ISED (IC), RCM, Anatel.
EN 60601-1-2 (Medical Equipment Directive)
Plenum-rated (UL2043)
APX 740

Front

Back
APX 320X

Deployment
Outdoor, IP 67 rated
General
STANDARDWi-Fi 5 (802.11ac Wave 2)
RADIO BANDS2.4 GHz, 5 GHz*
MANAGEMENTSophos Central cloud platform only
USAGEOutdoor or exposed areas, medium density
OPERATING TEMPERATURE-40°C/°F to 55°C/130°F
Performance
2x2:2
RADIO SPECIFICATION(WHERE NO RESTRICTIONS APPLY)Radio-0: 2.4 GHz/5 GHz dual-band
Radio-1: 5 GHz single band
(WHERE RESTRICTIONS APPLY*)Radio-0: 2.4 GHz OR 5 GHz single band use only
Radio-1: Not available
MAX. THROUGHPUT(WHERE NO RESTRICTIONS APPLY)Dual 5 GHz Mode: Up to 867 Mbps (5 GHz) + 867 Mbps (5 GHz) Dual-Band Mode: Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
(WHERE RESTRICTIONS APPLY*)Single 5 GHz Mode:Up to 867 Mbps (5 GHz) OR Single 2.4 GHz Mode: 300 Mbps (2.4 GHz)
ANTENNAS4 external omnidirectional
2x dual-band antenna for Radio-0
2x 5 GHz antenna for Radio-1
DFSYes
Physical Specifications
MOUNTINGPole or wall mount
MOUNTING KITIncluded: Bracket, clamps for wall and/or pole mount.
INTERFACES 1x RJ45 10/100/1000 Ethernet with 802.3at PoE+
POWER (MAX.)18.9 W
POWER-OVER-ETHERNETPoE+ 802.3at
DIMENSIONS260.5 x 180 x 87 mm
WEIGHT1.42 kg
CERTIFICATIONS AND COMPLIANCE2CE, FCC, IC (ISED), RCM, CB, UL, Anatel, NOM
APX 320X

Front

Back
2 Not all models may be available in all regions. Please check with your local supplier for details.

*APX 320X Regulatory Restrictions
Regulatory restrictions in some regions prevent the use of some (or all) 5 GHz channels in outdoor environments. Therefore, Radio-1 will not be available for configuration in some countries.
View List of Countries
APX Series – Optional Accessories
PoE Injectors |
All APX models are supplied without a PoE injector. Check the technical specifications to determine if you need 802.3af (PoE) or 802.3at (PoE+). PoE injectors can be purchased separately. |
|
Mounting Kits |
Optional mounting kits are available for the indoor APX 320, APX 530, and APX 740 for flat-ceiling, plenum, or suspend mount. Check with your local Sophos partner for further details and pricing. |
|
Antenna Options for APX 320X |
In addition to the omnidirectional antennas supplied with the unit, we also offer external antenna options for the outdoor APX 320X to meet the requirements of additional usage scenarios. These can be purchased separately.
As the name suggests, the standard omnidirectional antennas are designed to provide relatively even coverage around the unit in all directions. These are suitable for usage scenarios where the connecting clients will be distributed around the access point. In some outdoor areas, there may be obstructions which can interfere with the signal. With directional/sector antennas, you achieve targeted coverage over an extended range and reduce wasted signal. |
![]() |
