Sophos Switch
model comparison
Sophos Switch: Gigabit models and specifications
Our gigabit switch models cover your basic connectivity needs.
The 100 Series switches offer 1 GE ports plus either SFP or SFP+. 8, 24, and 48-port models are available.

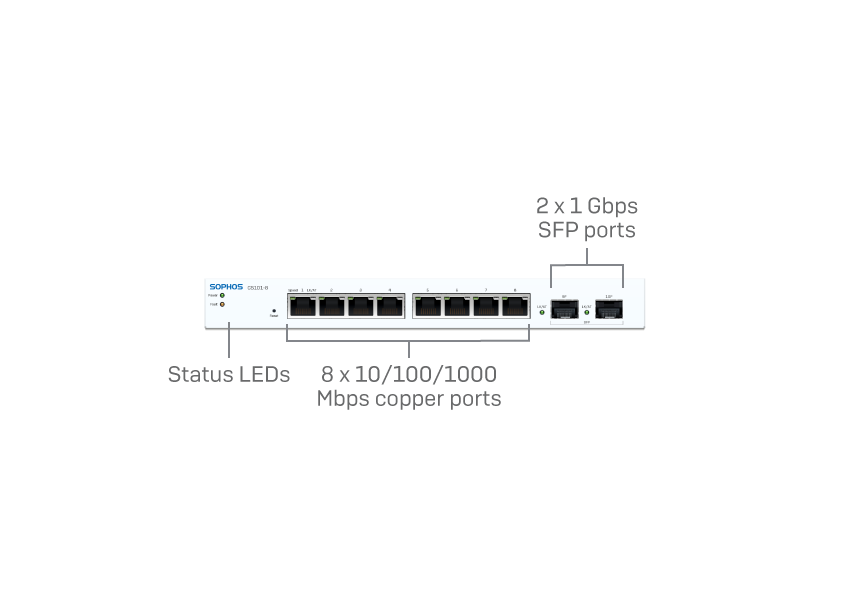

Front

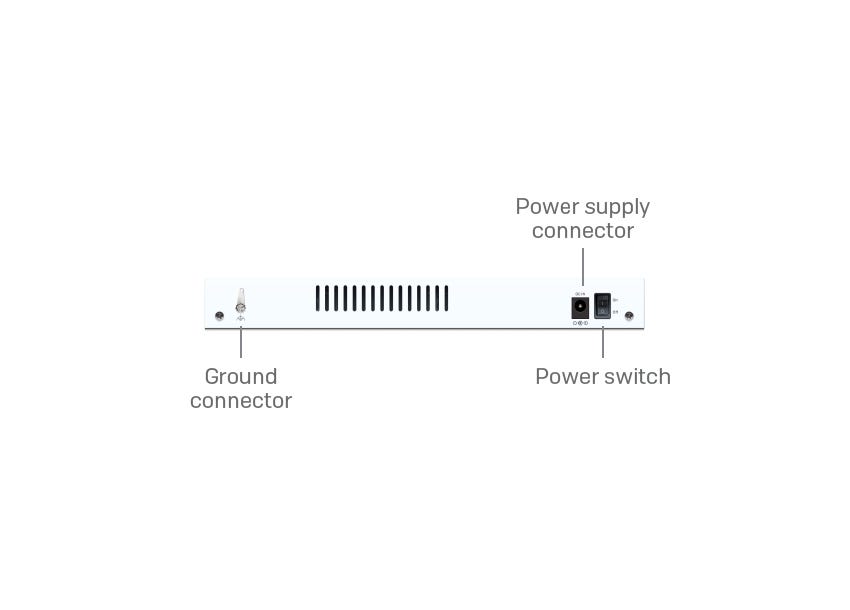

Back
Hardware
FORM FACTORDesktop
MOUNTINGWall Mount
Technical Specifications
SWITCHING CAPACITY 20 Gbps
MAC ADDRESS TABLE 8K
MEMORY 256 MB
FLASH MEMORY NOR 32 MB
PACKET BUFFER MEMORY 512 KB
VLAN
Support for up to 256 VLANs simultaneously (out of 4,096 VLAN IDs)
Network Interfaces
10/100/1000BASE-T8
SFP 1G2
SFP+ 1G/10G0
Other Interfaces
DC-In On/off switch
Power over Ethernet
POWER BUDGET N/A
POE-CAPABLE PORTS N/A
SUPPORTED POE STANDARD N/A
MAX. POE DEVICES N/A

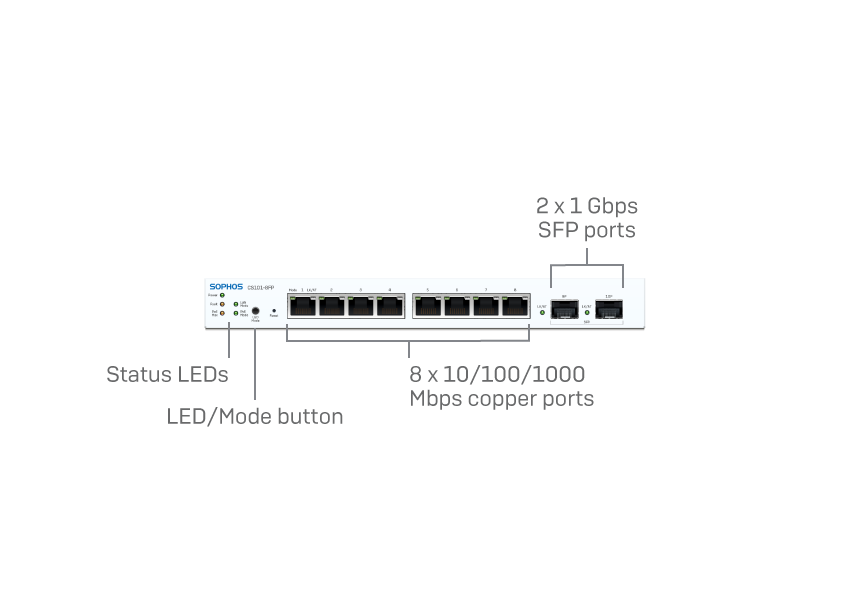

Front
Back
Hardware
FORM FACTORDesktop
MOUNTINGWall Mount
Technical Specifications
SWITCHING CAPACITY 20 Gbps
MAC ADDRESS TABLE 8K
MEMORY 256 MB
FLASH MEMORY NOR 32 MB
PACKET BUFFER MEMORY 512 KB
VLAN
Support for up to 256 VLANs simultaneously (out of 4,096 VLAN IDs)
Network Interfaces
10/100/1000BASE-T 8
SFP 1G 2
SFP+ 1G/10G 0
Other Interfaces
DC-In On/Off Switch
Power over Ethernet
POWER BUDGET 110W
POE-CAPABLE PORTS 1 to 8
SUPPORTED POE STANDARD 802.3af/802.3at
MAX. POE DEVICES 7 (15.4W)/3 (30W)

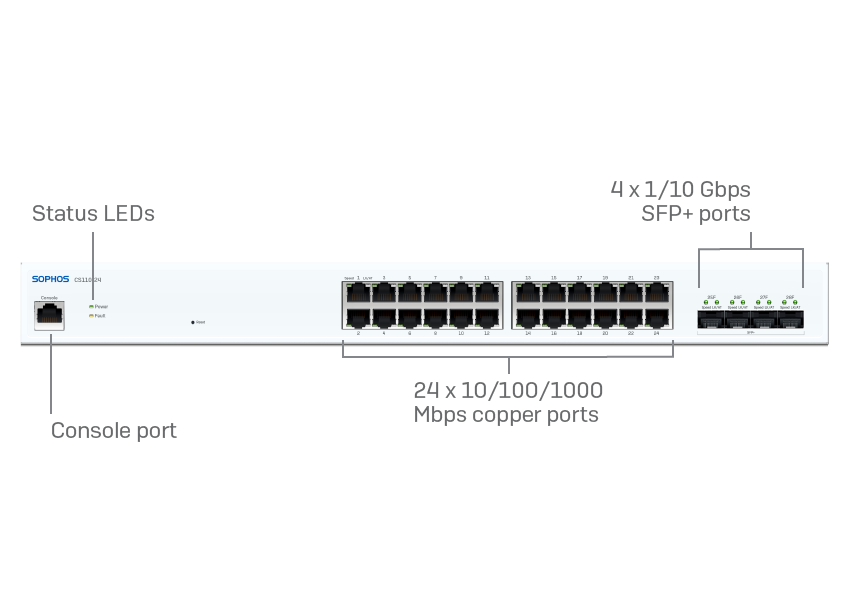

Front
Back
Hardware
FORM FACTOR1U
MOUNTINGRackmount
Technical Specifications
SWITCHING CAPACITY 128 Gbps
MAC ADDRESS TABLE 16K
MEMORY 512 MB
FLASH MEMORY NOR 2 MB
NAND 128 MB
PACKET BUFFER MEMORY 1.5 KB
VLAN
Support for up to 256 VLANs simultaneously (out of 4,096 VLAN IDs)
Network Interfaces
10/100/1000BASE-T 24
SFP 1G 0
SFP+ 1G/10G 4
Other Interfaces
Console Port | AC Power Socket
Power over Ethernet
POWER BUDGET N/A
POE-CAPABLE PORTS N/A
SUPPORTED POE STANDARD N/A
MAX. POE DEVICES N/A

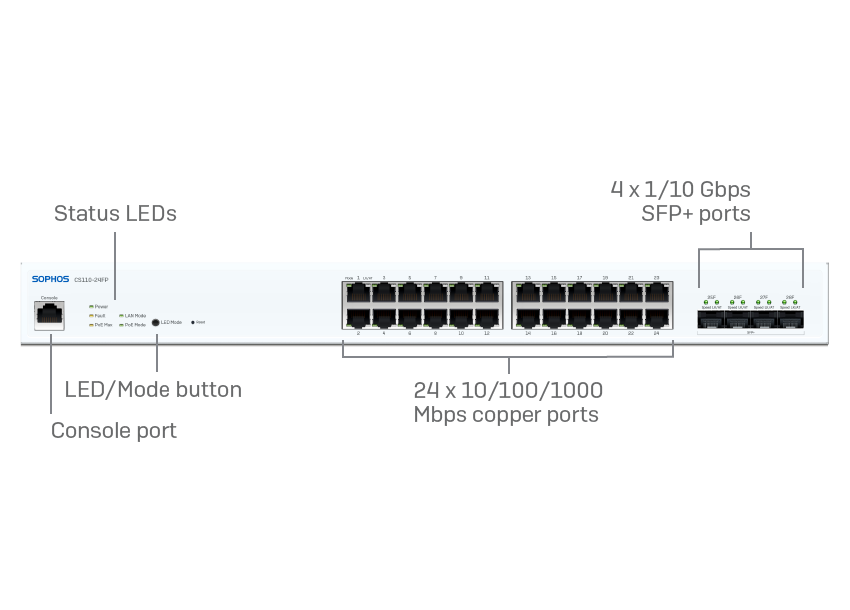

Front

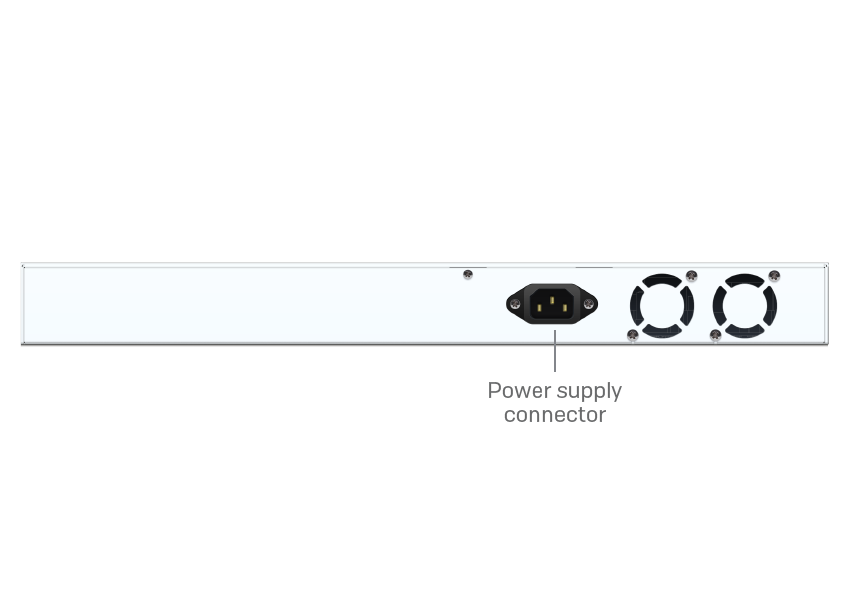

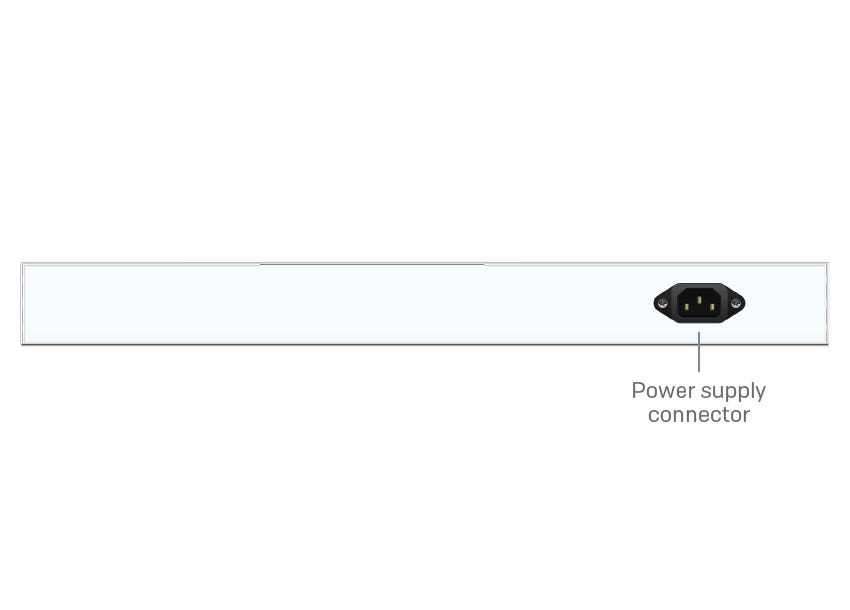

Back
Hardware
FORM FACTOR1U
MOUNTINGRackmount
Technical Specifications
SWITCHING CAPACITY 128 Gbps
MAC ADDRESS TABLE 16K
MEMORY 512 MB
FLASH MEMORY NOR 2 MB
NAND 128 MB
PACKET BUFFER MEMORY 1.5 KB
VLAN
Support for up to 256 VLANs simultaneously (out of 4,096 VLAN IDs)
Network Interfaces
10/100/1000BASE-T 24
SFP 1G 0
SFP+ 1G/10G 4
Other Interfaces
Console Port | AC Power Socket
Power over Ethernet
POWER BUDGET 410W
POE-CAPABLE PORTS 1 to 24
SUPPORTED POE STANDARD 802.3af/802.3at
MAX. POE DEVICES 24 (15.4W)/13 (30W)
Front
Back
Hardware
FORM FACTOR1U
MOUNTINGRackmount
Technical Specifications
SWITCHING CAPACITY 176 Gbps
MAC ADDRESS TABLE 32K
MEMORY 512 MB
FLASH MEMORY NOR 2 MB
NAND 128 MB
PACKET BUFFER MEMORY 2 MB
VLAN
Support for up to 256 VLANs simultaneously (out of 4,096 VLAN IDs)
Network Interfaces
10/100/1000BASE-T 48
SFP 1G 0
SFP+ 1G/10G 4
Other Interfaces
Console Port | AC Power Socket
Power over Ethernet
POWER BUDGET N/A
POE-CAPABLE PORTS N/A
SUPPORTED POE STANDARD N/A
MAX. POE DEVICES N/A

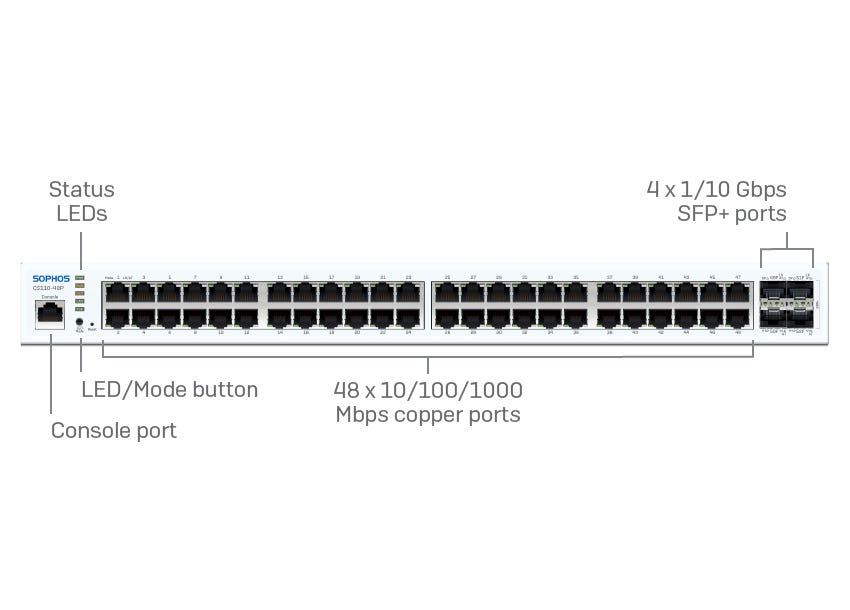

Front

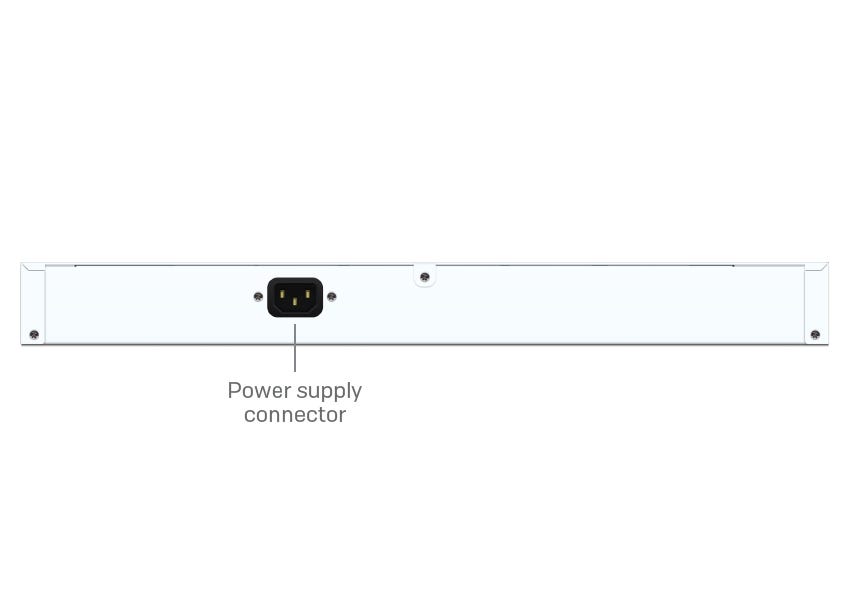

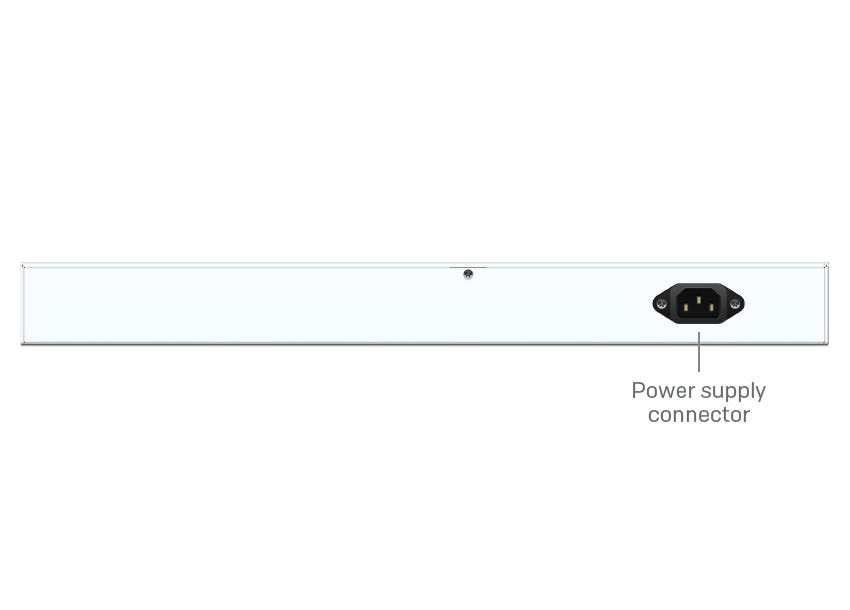

Back
Hardware
FORM FACTOR1U
MOUNTINGRackmount
Technical Specifications
SWITCHING CAPACITY 176 Gbps
MAC ADDRESS TABLE 32K
MEMORY 512 MB
FLASH MEMORY NOR 2 MB
NAND 128 MB
PACKET BUFFER MEMORY 2 MB
VLAN
Support for up to 256 VLANs simultaneously (out of 4,096 VLAN IDs)
Network Interfaces
10/100/1000BASE-T 48
SFP 1G 0
SFP+ 1G/10G 4
Other Interfaces
Console Port | AC Power Socket
Power over Ethernet
POWER BUDGET 410W
POE-CAPABLE PORTS 1 to 48
SUPPORTED POE STANDARD 802.3af/802.3at
MAX. POE DEVICES 26 (15.4W)/13 (30W)

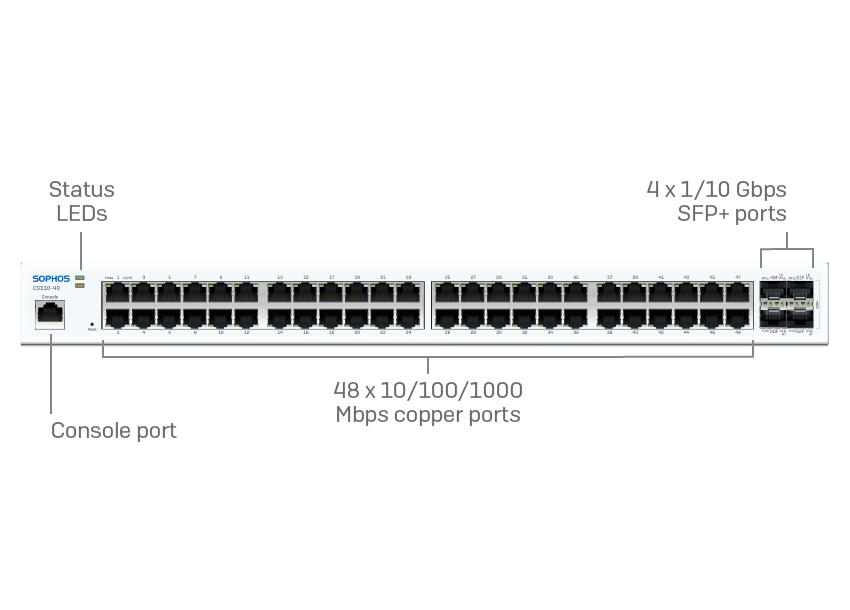

Front

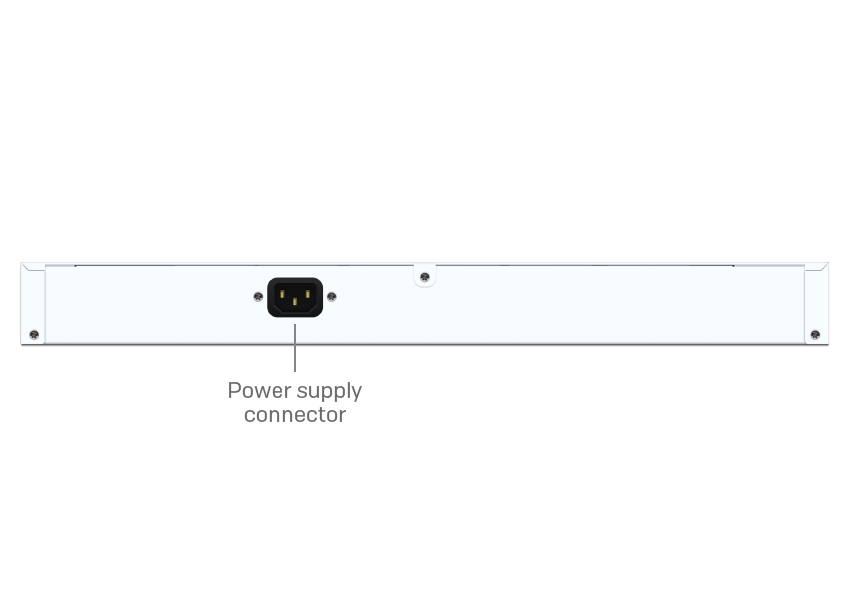

Back
Hardware
FORM FACTOR1U
MOUNTINGRackmount
Technical Specifications
SWITCHING CAPACITY 176 Gbps
MAC ADDRESS TABLE 32K
MEMORY 512 MB
FLASH MEMORY NOR 2 MB
NAND 128 MB
PACKET BUFFER MEMORY 2 MB
VLAN
Support for up to 256 VLANs simultaneously (out of 4,096 VLAN IDs)
Network Interfaces
10/100/1000BASE-T 48
SFP 1G 0
SFP+ 1G/10G 4
Other Interfaces
Console Port | AC Power Socket
Power over Ethernet
POWER BUDGET 740W
POE-CAPABLE PORTS 1 to 48
SUPPORTED POE STANDARD 802.3af/802.3at
MAX. POE DEVICES 48 (15.4W)/24 (30W)
